Doosan Machine Tools for metalworking

Doosan Machine Tools
Metalworking equipment of Doosan Machine Tools Co., Ltd. includes turning centers with CNC vertical and horizontal layout, as well as milling processing centers with CNC horizontal and vertical layout.

The main products offered by SFT groups:

Turning centers   Horizontal high-performance

Doosan PUMA 600 Series

  • Standard chuck 18 ''
  • Max. workpiece length 5000 mm (XL)
  • Max. motor power 45 kW

Doosan PUMA 700 Series

  • Standard Chuck 24 ''
  • Max. workpiece length 5050 mm (XL)
  • Max. motor power 45 kW

Doosan PUMA 800 Series

  • Standard Chuck - 32 ''
  • Max. workpiece length 5050 mm (XL)
  • Max. motor power 45 kW

Doosan PUMA 1000 Series

  • Standard Chuck - 32 ''
  • Max. workpiece length 2040 mm
  • Max. motor power 75 kW

Doosan PUMA 2100 Series

  • Standard cartridge - 8 ''
  • Max. workpiece length 750 mm (L)
  • Max. motor power 18.5 kW

Doosan PUMA 2600 Series

  • Standard Chuck - 10 '' (12``)
  • Max. workpiece length 1300 mm (L)
  • Max. motor power 22 kW

Doosan PUMA 3100 Series

  • Standard chuck - 12 ''
  • Max. workpiece length 3000 mm (UL)
  • Max. motor power 22 kW

Doosan PUMA 4100 Series

  • Standard Chuck - 12 '' (15``, 21 '')
  • Max. workpiece length 3000 mm (XL)
  • Max. motor power 37 kW

Doosan PUMA 5100 Series

  • Cartridge 15 '' (21 '', Big bore)
  • Max. workpiece length 3000 mm (XL)
  • Max. motor power 45 kW

Doosan PUMA GT2100 Series

  • Standard chuck 8 '' (10``)
  • Max. workpiece length 600 mm
  • Max. motor power 18.5 kW

Doosan PUMA GT2600 Series

  • Standard Chuck 10 ''
  • Max. workpiece length 1000 mm (L)
  • Max. motor power 22 kW

Doosan PUMA GT 3100 Series

  • Standard Chuck 12 ''
  • Max. workpiece length 1300 mm
  • Max. motor power 35 kW
Sliding head machines (ATP)   Sliding head machines (ATP)

Doosan PUMA ST26GS

  • Max. turning diameter 26 mm
  • Max. processing length 200 mm
  • Motor power 5.5 kW

Doosan PUMA ST32G, 32GS

  • Max. turning diameter 32mm
  • Max. Machining Length 320mm
  • Max. Main Spindle Motor Power 7,5kW

Doosan PUMA ST35GS

  • Max. turning diameter 35mm
  • Max. Machining Length 300mm
  • Max. Main Spindle Motor Power 7,5kW

Doosan PUMA ST10GS

  • Max. turning diameter 10mm
  • Max. Machining Length 120mm
  • Max. Main Spindle Motor Power 3,7kW

Doosan PUMA ST20G, 20GS

  • Max. turning diameter 20mm
  • Max. Machining Length 210mm
  • Max. Main Spindle Motor Power 3,7kW
Horizontal boring machines   Horizontal boring machines

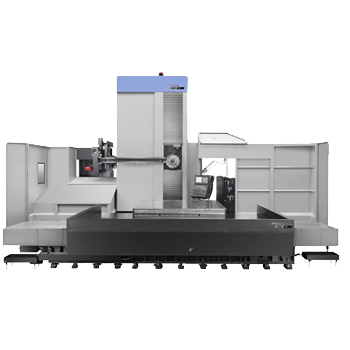

Doosan DBC 160 Series

  • Spindle or QUILL Diameter 160mm
  • Table Size 2000X2200mm
  • Max. motor power 45kW

Doosan DBC 250 Series

  • Spindle or QUILL Diameter 250mm
  • Table Size 1600X1800mm
  • Max. motor power 30kW

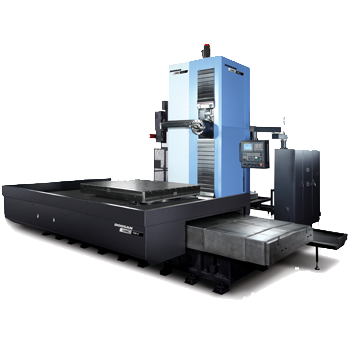

Doosan DBC II Series

  • Spindle or QUILL Diameter 130mm
  • Table Size 1600X1800mm
  • Max. motor power 26kW

Doosan DBC S Series

  • Spindle or QUILL Diameter 130mm
  • Table Size 1400x1600mm
  • Max. motor power 37kW
Gantry machining centers Gantry machining centers

Doosan BM Series

  • Eff. distance between columns 2740 mm
  • Table size 4000x2500 mm
  • Max. motor power 40kW
5 axis machines   5 axis machines

Doosan DVF 5000

  • Additional table support
  • Simultaneous multi-axis machining
  • Max. workpiece weight - 400 kg.

Doosan DHF Series

  • Table Size 800X800mm twin-pallet
  • Max. Spindle Speed 6000rpm
  • Max. motor power 25kW

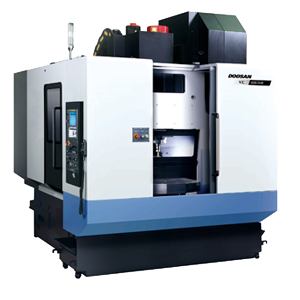

Doosan VC 630/5AX

  • Table Size Φ630mm
  • Max. Spindle Speed 12000prm
  • Max. motor power 30kW

Doosan FM 350/5AX linear

  • Table Size Φ350mm
  • Max. Spindle Speed 40000prm
  • Max. motor power 12,6kW

Doosan FM 200/5AX linear

  • Table Size Φ200mm
  • Max. Spindle Speed 40000prm
  • Max. motor power 12.6kW

Doosan DNM 350/5AX Series

  • Table Size Φ350mm
  • Max. Spindle Speed 12000prm
  • Max. motor power 18,5kW

Doosan DNM 200/5AX Series

  • Table Size Φ200mm
  • Max. Spindle Speed 12000prm
  • Max. motor power 18,5kW

Doosan VCF Series

  • Table Size 3500X870 mm
  • Tooling Taper 40
  • Max. motor power 32kW

Doosan PUMA SMX3100 Series

  • Max. turning diameter 660mm
  • Max. workpiece length 2540mm
  • Max. motor power 30kW

Doosan Puma SMX2600 Series

  • Max. turning diameter 660mm
  • Max. workpiece length 1540mm
  • Max. motor power 26kW

Doosan PUMA MX2600 Series

  • Max. turning diameter 760mm
  • Max. workpiece length 1540mm
  • Max. motor power 26kW

Doosan PUMA MX2100 Series

  • Max. turning diameter 540mm
  • Max. workpiece length 1520mm
  • Max. motor power 22kW

Doosan PUMA MX1600 Series

  • Max. turning diameter 330mm
  • Max. workpiece length 900mm
  • Max. motor power 15kW
Machining centers Vertical 2-spindle

Doosan DMP 500/2SP Series

  • Table Size 1200X520mm
  • Max. Spindle Speed 12000prm
  • Max. motor power 18,5kW
  • Max. motor power 18,5kW
Turning centers   Horizontal multi-axis turning centers

Doosan PUMA TL2500 Series

  • Max. turning diameter 370 mm
  • Max. workpiece length 1000 mm (L)
  • Max. motor power 26 kW

Doosan PUMA TL2000 Series

  • Max. turning diameter 370 mm
  • Max. workpiece length 1000 mm (L)
  • Max. motor power 22 kW

Doosan PUMA TT2500 Series

  • Max. turning diameter 390 mm
  • Max. workpiece length 300 mm
  • Max. motor power 26 kW

Doosan PUMA TT1800 Series

  • Max. turning diameter 230 mm
  • Max. workpiece length 200 mm
  • Max. motor power 22 kW
Horizontal boring machines   Duplex type boring machines

Doosan DBD Series

  • Table Size 1500x8000mm
  • Travel (X/Y/Z/W) 8000/2000/450/500
  • Max. motor power 26kW
Gantry machining centers & nbsp; Gantry 5-axis machining centers

Doosan DCM Series

  • Effective Width between Columns 3700mm
  • Table Size 4100X10100X3200
  • Max. motor power 25kW
Machining centers & nbsp; Vertical multipurpose

Doosan VCF Series

  • Table Size 3500X870 mm
  • Tooling Taper 40
  • Max. motor power 32kW
Turning centers & nbsp; Horizontal duplex

Doosan PUMA TW2600 Series

  • Max. turning diameter 360 mm
  • Max. workpiece length 170 mm
  • Max. motor power 18.5 kW
Machining centers & nbsp; Vertical high performance

Doosan Mynx 9500 Series

  • Table Size 2500X950mm
  • Max. Spindle Speed ​​6000mm
  • Max. motor power 22kW

Doosan Mynx 6500, 6500/50

  • Table Size 1400X670mm
  • Max. Spindle Speed 8000prm
  • Макс. мощность мотора 15kW

Doosan Mynx 5400, 5400/50 Series

  • Table Size 1200X540mm
  • Max. Spindle Speed ​​8000prm
  • Max. motor power 15kW

Doosan 750 II, 750L II, 750/50 II, 750L / 50 II Series

  • Table Size 2160X760mm
  • Max. Spindle Speed ​​8000prm
  • Max. motor power 18,5kW

Doosan DNM 6700 / 650HS Series

  • Table Size 1500X670mm
  • Max. Spindle Speed ​​15000prm
  • Max. motor power 22kW

Doosan DNM 5700/500HS Series

  • Table Size 1300X570mm
  • Max. Spindle Speed 15000prm
  • Max. motor power 22kW

Doosan DNM 4500/400HS Series

  • Table size: 1000 x 450 mm.
  • Max. spindle speed 15000 rpm.
  • Max. motor power 22 kW

Doosan DNM 400α Series

  • Table Size 790X435mm
  • Max. Spindle Speed 8000mm
  • Max. motor power 11kW
Turning centers   Horizontal compact

Doosan LEO 1600

  • Max. turning diameter 320 mm
  • Max. workpiece length 303 mm
  • Max. motor power 7.5 kW

Doosan Lynx 2100 Series

  • Max. turning diameter 350 mm
  • Max. workpiece length 500 Class
  • Max. motor power 15 kW

Doosan Lynx 220 Series

  • Max. turning diameter 320mm
  • Max. workpiece length 500 Class
  • Max. motor power 15kW

Doosan Lynx 220G super

  • Max. Gang type machining diameter
  • Max. workpiece length 300 Class
  • Max. motor power 15kW

Doosan Lynx 300 Series

  • Max. turning diameter 450mm
  • Max. workpiece length 750 Class
  • Max. motor power 15kW
Machining centers   Heavy duty horizontal

Doosan NHM Series

  • Pallet Size 800X800mm
  • Max. Spindle Speed 6000prm
  • Max. motor power 35kW

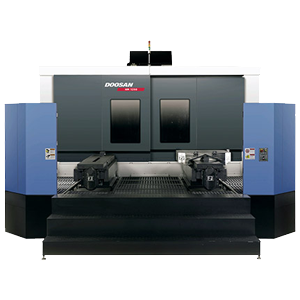

Doosan HM 1000/1250 Series

  • Pallet Size 1250X1250mm
  • Max. Spindle Speed 6000prm
  • Max. motor power 26kW

Doosan HM 5000 Series

  • Pallet Size 500X500mm
  • Max. Spindle Speed 6000prm
  • Max. motor power 15kW
Machining centers   Horizontal high-performance

Doosan NHP 5500/6300/8000 Series

  • Pallet Size 800X800mm
  • Max. Spindle Speed 10000prm
  • Max. motor power 45kW

Doosan NHP 4000/5000 Series

  • Pallet Size 500X500mm
  • Max. Spindle Speed 15000prm
  • Max. motor power 30kW

Doosan HP 4000II/5100II Series

  • Pallet Size 500X500mm
  • Max. Spindle Speed 14000prm
  • Max. motor power 22kW

Doosan HC 400II/500II Series

  • Pallet Size 500X500mm
  • Max. Spindle Speed 8000prm
  • Max. motor power 18,5kW
Turning centers   For processing alloy wheels

Doosan PUMA VAW Series

  • Max. cutting diameter 720mm
  • Max. billet length Aluminum wheel-only
  • Max. motor power 55kW

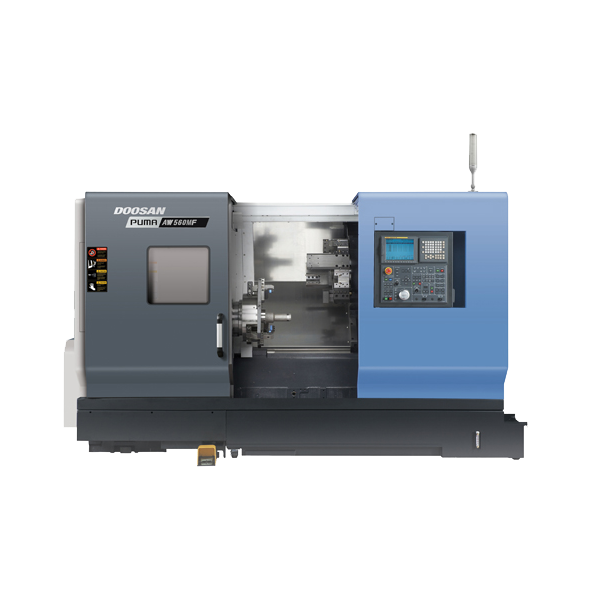

Doosan PUMA AW Series

  • Max. cutting diameter 550mm
  • Max. billet length Aluminum wheel-only
  • Max. motor power 37kW
Turning centers   Vertical Lathes

Doosan PUMA VT1100 Series

  • Max. turning diameter 1100mm
  • Max. workpiece length 1000mm
  • Max. motor power 60kW

Doosan PUMA VT900 Series

  • Max. turning diameter 900mm
  • Max. workpiece length 850mm
  • Max. motor power 45kW

Doosan PUMA VT450 Series

  • Max. turning diameter 450mm
  • Max. workpiece length 450mm
  • Max. motor power 22kW

Doosan PUMA V8300 Series

  • Max. turning diameter 830mm
  • Max. workpiece length 750mm
  • Max. motor power 37kW

Doosan PUMA V400 Series

  • Max. turning diameter 496mm
  • Max. workpiece length 461mm
  • Max. motor power 22kW
Turning centers   Vertical turning and boring machines
Doosan PUMA VTS1620 Series

Doosan PUMA VTS1620 Series

  • Max. turning diameter 2000mm
  • Max. workpiece length 1556mm
  • Max. motor power 55kW

Doosan PUMA VTR1216 Series

  • Max. turning diameter 1600mm
  • Max. workpiece length 1250mm
  • Max. motor power 45kW

Doosan PUMA VTS1214 Series

  • Max. turning diameter 1350mm
  • Max. workpiece length 814mm
  • Max. motor power 45kW
Machining centers   For processing dies and molds

Doosan NX 5500 II, 6500 II

  • Table Size 1200X650mm
  • Max. Spindle Speed 20000prm
  • Max. motor power 22kW

Doosan DVM 500 II, 650 II Series

  • Table Size 1300X670mm
  • Max. Spindle Speed 20000prm
  • Max. motor power 22kW

Doosan VM 1260 Series

  • Table Size 2800X1260mm
  • Max. Spindle Speed 6000prm
  • Max. motor power 22kW

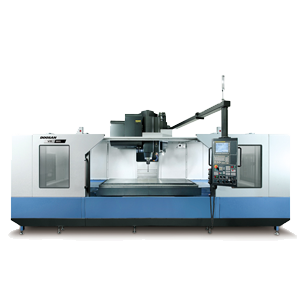

Doosan VM 960, 960L Series

  • Table Size 2600X950mm
  • Max. Spindle Speed 6000prm
  • Max. motor power 18,5mm

Doosan VM 750, 750L Series

  • Table Size 1900X800mm
  • Max. Spindle Speed 6000prm
  • Max. motor power 18,5kW

Doosan VM 5400, 6500 Series

  • Table Size 1400X670mm
  • Max. Spindle Speed 12000mm
  • Max. motor power 15,6kW
Turning centers   Multipurpose Lathes

Doosan PUMA SMX3100 Series

  • Max. turning diameter 660mm
  • Max. workpiece length 2540mm
  • Max. motor power 30kW

Doosan Puma SMX2600 Series

  • Max. turning diameter 660mm
  • Max. workpiece length 1540mm
  • Max. motor power 26kW

Doosan PUMA MX2600 Series

  • Max. turning diameter 760mm
  • Max. workpiece length 1540mm
  • Max. motor power 26kW

Doosan PUMA MX2100 Series

  • Max. turning diameter 540mm
  • Max. workpiece length 1520mm
  • Max. motor power 22kW

Doosan PUMA MX1600 Series

  • Max. turning diameter 330mm
  • Max. workpiece length 900mm
  • Max. motor power 15kW
Machining centers   Vertical compact

Doosan T4000, 4000L Series

  • Table Size 850X400mm
  • Max. Spindle Speed 12000prm
  • Max. motor power 12kW
Machining centers   Vertical with movable columns and two pallets

Doosan T3600D Series

  • Table Size 650X375mm (2EA)
  • Max. Spindle Speed 12000prm
  • Max. motor power 13kW

Doosan VC 510 Series

  • Table Size 860X570mm (2EA)
  • Max. Spindle Speed 10000prm
  • Max. motor power 18,5kW

Doosan VC 430 Series

  • Table Size 712X490mm (2ea)
  • Max. Spindle Speed 10000prm
  • Max. motor power 18,5kW

Doosan VC 3600 Series

  • Table Size 650X375mm (2ea)
  • Max. Spindle Speed 12000mm
  • Max. motor power 18,5kW
Меню
