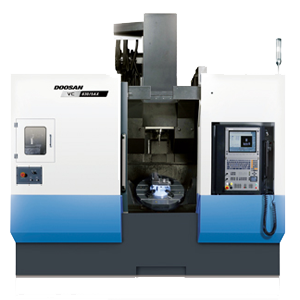

Doosan VC 630/5AX

Doosan VC 630/5AX

  • Table Size Φ630mm
  • Max. Spindle Speed 12000prm
  • Max. motor power 30kW
Description
Specifications
Complete set
Part types
Description

5 Axis Machining Center Doosan VC 630 5Ax

Doosan VC630 5Ax 5-axis MACHINING CENTERS allow complete machining of parts in one setup.

the machine is equipped with a Heidenhain iTNC 530 control and a choice of spindle speeds (12,000-20,000 rpm) depending on the requirements.

You can select the Volume of the tool changer (60/81/101/121 positions), and the rotary tilt table of the machine has a tilt range of 150 hailusov on axis A and 360 hailusov on axis c.

Also Machines can be supplied with Fanuc or Siemens control.

Machines VC 630 5Ax can be supplied with an integrated pallet changer.

Specifications



Description Unit VC 630/5AX VC 630/5AX с APC
Travels X-axis mm (inch) 650 (25.6)
Y-axis mm (inch) 765 (30.1)
Z-axis mm (inch) 520 (20.5)
A-axis deg. 150 (+30~ -120)
C-axis deg. 360
Distance from spindle nose to table top mm (inch) 210 ~ 730 (8.3~28.7) 160 ~ 680 (6.3~26.8)
Distance from spindle center to column guideway mm (inch) 220 (8.7)
Feedrate Rapid traverse rate (X / Y / Z) m/min (ipm) 40 / 40 / 36 (1574.8 / 1574.8 / 1417.3)
Rapid traverse rate (A / C) r/min 20 / 30
Cutting feedrate (X / Y / Z) mm/min (ipm) 18000 (708.7)
Cutting feedrate (A / C) deg/min 7200
Table Table size mm (inch) 0 630 (24.8) 500 x 500 (19.7 x19.7)
Table loading capacity kg (lb) 500 (1102.3)
Max. workpiece swing diameter x height mm (inch) 0 730 x 500 (28.7 x 19.7) 0 730 x 450 (28.7 x 17.7)
Minimum table indexing angle 0.001
Spindle Max. spindle speed r/min 12000 {20000}
Spindle taper ISO#40 7 / 24 Taper
Max. spindle torque N.m (ft-lb) 204 (150.6) (25% ED)
Automatic tool changer Type of tool shank MAS403 BT40
Tool storage capacity ea 40 {60 / 81 / 101 / 121}
Max. tool diameter mm (inch) 0 80 (59.0)
Max. tool diameter сout adjacent tools mm (inch) 0 125 (92.3)
Max. tool length mm (inch) 300 (221.4)
Max. tool weight kg (lb) 8 (17.6)
Method of tool selection Fixed address
Tool change time (tool-to-tool) s 1.0
Tool change time (chip-to-chip) s 8.5
Automatic

pallet

changer

 Number of pallet ea 2
Type Rotary shuttle
Pallet change time s 30
Motor Spindle motor power kW (Hp) FANUC 31 i-5 : 22/18.5 (29.5/24.8 Hp) {HEIDENHAIN iTNC 530 : 23.5/18(31.5/24.2 Hp), 12000 r/min / 28/24(37.6/32.2 Hp) : 20000 r/min)}

{SIEMENS 840 Dsl : 30/24(40.3/32.2 Hp)}
Power

source

 Electric power supply kVA 53.3
Compressed air supply MPa 0.54
Tank

capacity

 Coolant tank capacity L (galon) 360 (95.1)
Lubrication tank capacity L (galon) 1.32 (0.4)
Machine

Dimensions

 Machine dimension (L x W x H) mm (inch) 3537(4587 : с chip conveyor ) x 3200 x 3295

(139.3(180.6 : с chip conveyor) x 126 x 129.7)

 5357(с chip conveyor : 6413) x4231x3295

(210.9(с chip conveyor : 252.5) x 166.6 x 129.7)
Machine weight kg (lb) 12500 (27557.4) 16000 (35273.4)
NC System FANUC 31i-5

{DOOSAN FANUC i / HEIDENHAIN iTNC 530 / SIEMENS 840 Dsl}



Description Ed VC 630/5AX VC 630/5AX с APC
Traffic X-axis мм (in) 650 (25.6)
Y-axis мм (in) 765 (30.1)
Z-axis мм (in) 520 (20.5)
A-axis hailusov 150 (+30~ -120)
C-axis hailusov 360
Distance from spindle up to table top мм (in) 210 ~ 730 (8.3~28.7) 160 ~ 680 (6.3~26.8)
Distance from the spindle up to Center of the rack guide мм (in) 220 (8.7)
feed rate rapid traverse speed (X / Y / Z) м/rpm (ipm) 40 / 40 / 36 (1574.8 / 1574.8 / 1417.3)
rapid traverse speed (A / C) об/rpm 20 / 30
cutting speed (X / Y / Z) мм/rpm (ipm) 18000 (708.7)
cutting speed (A / C) hailusov/rpm 7200
Working surface Working surface size мм (in) 0 630 (24.8) 500 x 500 (19.7 x19.7)
Possible load кг (lbs) 500 (1102.3)
Max. workpiece turning diameter “X” Height мм (in) 0 730 x 500 (28.7 x 19.7) 0 730 x 450 (28.7 x 17.7)
rpm. angle of rotation of table indexing 0.001
Spindle Max. spindle speed об/rpm 12000 {20000}
Tool taper ISO#40 7 / 24 Taper
Max. spindle torque Н.м (фут0-фунт) 204 (150.6) (25% ED)
Automatic tool changer Shank type MAS403 BT40
Tool storage container PC. 40 {60 / 81 / 101 / 121}
Max. tool diameter мм (in) 0 80 (59.0)
Max. tool diameter без соседних instruments мм (in) 0 125 (92.3)
Max. tool length мм (in) 300 (221.4)
Max. tool weight кг (lbs) 8 (17.6)
Instruments selection method Fixed
Tool change time (tool to tool) sec. 1.0
Tool change time (cut to cut) sec. 8.5


Auto pallet change

 Number of pallets PC. 2
A type Swivel device
Pallet change time sec. 30
Engine spindle motor power kV (лс.) FANUC 31 i-5 : 22/18.5 (29.5/24.8 Hp) {HEIDENHAIN iTNC 530 : 23.5/18(31.5/24.2 Hp), 12000 r/min / 28/24(37.6/32.2 Hp) : 20000 r/min)}

{SIEMENS 840 Dsl : 30/24(40.3/32.2 Hp)}


A power source

 Power consumption kVА 53.3
Compressed air supply MPa 0.54


Volume Tankа

 Coolant tank capacity Л (gallon) 360 (95.1)
Grease tank capacity Л (gallon) 1.32 (0.4)


Overall dimensions of the device

 Dimensions (L x W x H) мм (in) 3537(4587 : с chip conveyor ) x 3200 x 3295

(139.3(180.6 : с chip conveyor) x 126 x 129.7)

 5357(с chip conveyor : 6413) x4231x3295

(210.9(с chip conveyor : 252.5) x 166.6 x 129.7)
Weight Device кг (lbs) 12500 (27557.4) 16000 (35273.4)
CNC system FANUC 31i-5

{DOOSAN FANUC i / HEIDENHAIN iTNC 530 / SIEMENS 840 Dsl}

×
