Miyano LX Series

Specifications

Complete set

Part types

Description

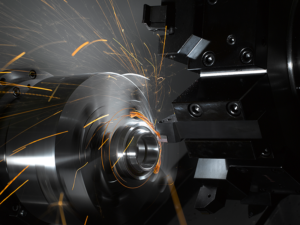

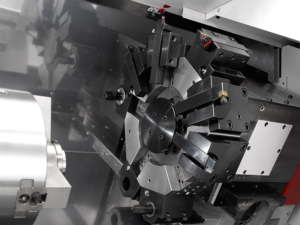

By having the wedge-clamp-type direct mount 10-station tool turret for 25-byte, it becomes possible to operate hard cutting

These TURNING CENTERS with CNC consist of a fixed headstock of the main spindle, a rotary head of the swivel type on transverse (X-axis) and longitudinal (Z-axis) bearings, and a tailstock (optional). The Series has been designed for bar machining that requires lateral drilling / milling and back machining, and chucking of cut, forgings and castings. Oi-TC FANUC CNC control system.

Specifications

Item	LX-08C
Machining capacity
Max. work length	320 mm
Max. machining diameter	Max. 210mm Dia.
Spindle
Number of spindle	1
Spindle speed range	40 – 4,000min^-1
Spindle draw tube dia.	52 mm Dia.
Type of chucking system	Hydraulic thru-hole chuck cylinder
Collet chuck type	HardingeS22 with pad
Collet chuck type	HardingeS22 with pad
Power chuck type	8″ thru-hole power chuck
Tool slide
Number of Tool slide	1
Type of tool slide	10st. turret
Size of Turning Tools	25 mm Sq
Size of Drill & Boring Tools	40 mm Dia
Turret Index Time	0.26 sec / 1pos.
Slide
Slide travel X-axis	175 mm
Z-axis	435 mm
Rapid Feed rate X-axis	12 m/ min.
Z-axis	16 m/ min.
Tailstock (Option)
Slide type	Hydraulic
Max. slide travel	300 mm
Live center size	MT4
Max. slide thrust	4.3 KN/ 3.4 MPa
Min. slide thrust	0.36 KN/ 0.3 MPa
Quill type	Hydraulic
Max. slide travel	10 mm (Quill 90 mm + Manyual 220 mm)
Live center size	MT4
Max. slide thrust	4.3KN /3.4 MPa
Max. slide thrust	4.3KN /3.4 MPa
Min. slide thrust	0.36KN /0.3 MPa
Min. slide thrust	0.36KN /0.3 MPa
Tank capacity
Tank capacity
Hydraulic oil tank capacity	10 L
Hydraulic oil tank capacity	10 L
Lubricating oil tank capacity	2 L
Lubricating oil tank capacity	2 L
Coolant tank capacity	150 L
Machine dimensions
Machine hight	1,734 mm
Floor space	2,150 mm x 1,728 mm
Machine weight	4,500 kg
Motors
Spindle drive	AC 75/ 11
Coolant ponp	AC 0.18 kW
Power supply
Voltage	AC 200 V ± 10%, 50/ 60 Hz± 1%
Capacity	22 KVA
Air supply	0.5 MPa (5 kgf/ cm2)
Fuse	100 A

Complete set

Standard complete set:

Locking the front door of the safety guard
Coolant system with chip tray
Full protection against coolant splash and chip spread
Hand tool kit (including small service tools)
Leveling screws and plates
Machine operation and maintenance manual
Safety decals
Work area lighting
Standard set of tool holders

Optional Accessories and Options:

Spindle collets, special chucks
Optional tool holders and drive units
Systems for automatic unloading / loading of parts
High pressure coolant systems
Optical rulers
Active tool control and sizing systems
Blow-off / flush / removal / transport systems
Built-in graphics editor
Tool load monitoring
CNC system options
Software options

You can get additional information from our managers.

Please note that the manufacturer may change the design and specifications without prior notice.
