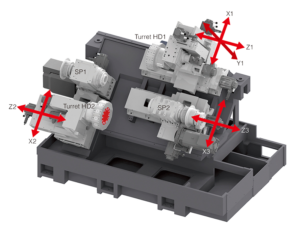

Machines Miyano (Citizen) Series BNE, with two spindles and two revolving heads, allow you to complete production and implement a combination of processes, reducing processing time.
• Spindle with high Art. Art.
• Manually scraped guides on all axes.
• Artanina high ArtkoArt.
• Highly Artistic, High-precision Revolving Heads (two 12-Position Revolving Heads).
The Machines BNE-6 has the same basic design as the BNE-5, with two spindles and two revolving heads, but we have reduced costs while improving functionality, resulting in a distinct Artistic Art. The machining range has been expanded by increasing the diameters of the maximum machining from φ34 mm and φ51 mm to those preset on the BNE-5 models to φ42 mm and φ51 mm (as an option, a collet chuck φ34 mm is also available as an option). The last CNC node reduces the start-up time by 10% with high-speed data processing and proven T and M code processing, so performance is improved. Information about Artank is displayed on the eCrane operation when entering processing data and in accordance with Art stages of maintenance work, as well as an easy-to-understand operable Art also helps to reduce the time for Art.
BNE-42S6 / 51S6 (CNC system: FANUC FS31i-B).

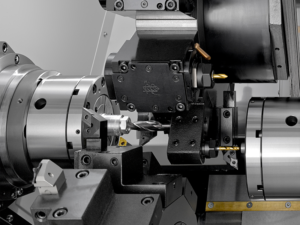

DemonArts high performance Art with a 2-spindle and 2-revolving head layout, which allows simultaneous processing of parts in both left and right directions.
BNE-42SY6 / 51SY6 (CNC unit: FANUC FS31i-B).
Extends the range of complex machining by adding a Y-axis to the upper revolving head (HD1).
BNE-51MSY (CNC unit: MITSUBISHI M730VS).
Performs simultaneous machining of holes on both ends and simultaneous machining with three tools using overlay control by adding the Y axis to the upper turret head (HD1) and the X3 axis to the auxiliary spindle (SP2).
